What is Silver Scan-Tool™?
The Silver Scan-Tool™ is designed for OBD (On Board Diagnostics) diagnostics according to SAE J1979, SAE J1939 and ISO 27145. The software maps the legally required features, i.e. the exhaust-related systems are scanned selectively. The tool meets the requirements of SAE J1979 and SAE J1939 (Heavy Duty OBD) as well as ISO 27145 (WWH-OBD).
Basic features:

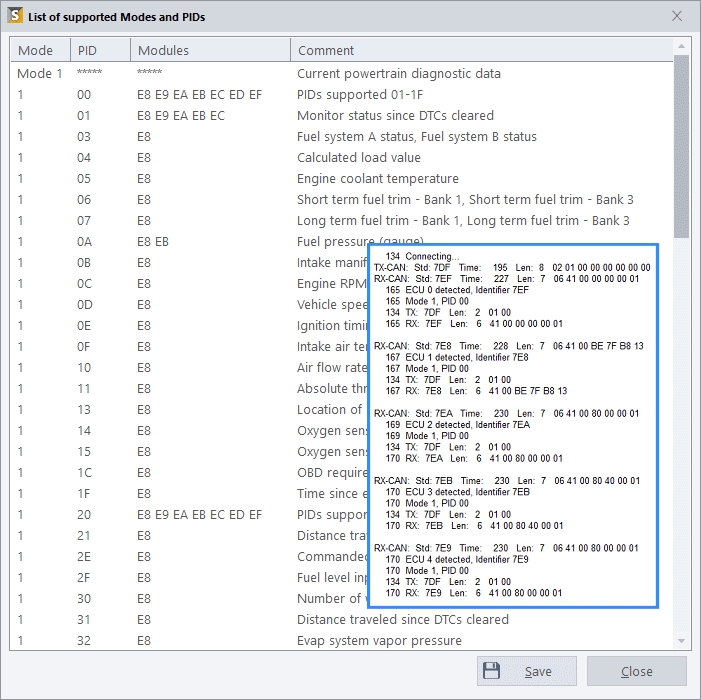

- Overview table of supported services and sub-functions
- OBDII/EOBD scan tool function according to ISO 9141-2 / SAE J1979, ISO 14230 ISO 15765-4 (CAN), SAE J1850 PWM (Ford) and J1850 VPW (General Motors)
- All ten defined services ($01 to $0A) and all sub-functions (PIDs) are supported
- The extended PIDs in service $01 are supported
- Extended infotypes in service $09 are supported (Fuel/Energy Consumption, NOxBin, etc.)
- Automatic display of all control units that respond to the scan tool request
- Functions to support WWH-OBD (World-Wide Harmonized OBD) according to ISO 27145
- HD-OBD scan tool function according to SAE J1939
- Display of HD-OBD and WWH-OBD data in functional groups: readiness, current data, fault codes, freeze frames, test results, tracking, IUMPR.

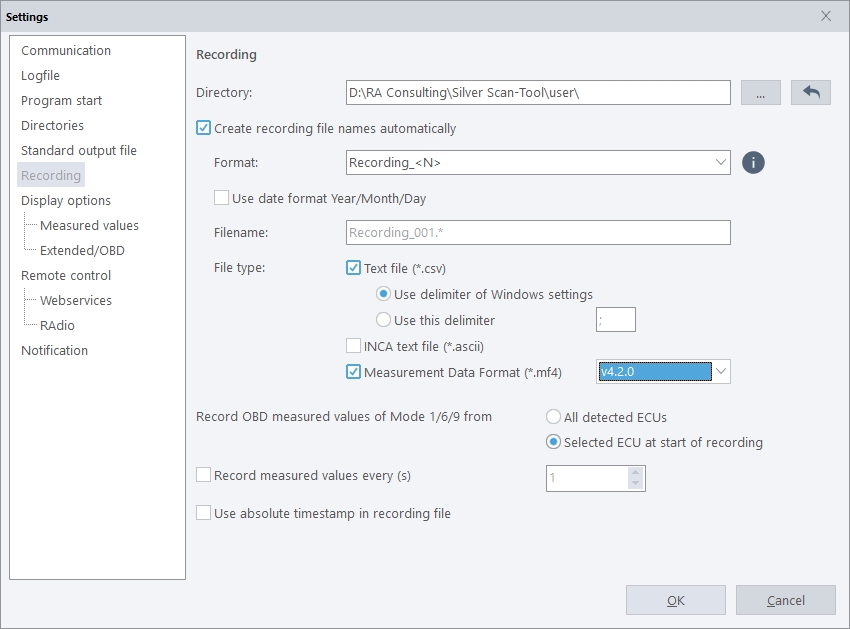

- Recording and evaluation functions
- Visualization of measurement values including bit values (e.g. readiness in service $01)
- Export of measurement values, e.g. CSV or MDF4
- DiagRA X Viewer for displaying and evaluating data in MDF4 files
- Further output formats TXT and XML, converter for generating PDF, HTML and Excel
- Driving function for driving to self-defined or standard curves such as FTP75, ECE, MVEGA or MVEGH, SRC, WLTC and CHTC. The comparison value is a selected value from service $01 (e.g. speed value PID $0D)
- Real-time communication monitor with message filter
- SAE J1939-84 tool with function for executing the individual test cases

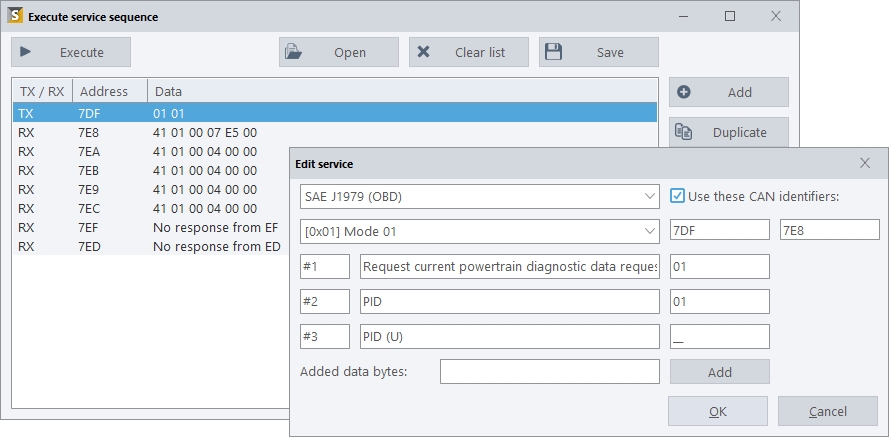

- Function for sending user-defined diagnostic messages
- A wide range of supported communication interfaces from various manufacturers such as Kvaser, I+ME Actia, Vector, ETAS and from interfaces with standard drivers SAE J2534 PassThru, RP1210 and PDU-API
SAE J1699-3 Extension module for the test procedure with Windows interface:
- testing of emission-related onboard diagnostic functions
- PassThru interfaces
- log file formatter
- and much more
SAE J1939-84 test procedure:
- execution and logging of the complete test procedure
- consistency check of the fault memory
- consistency check of the measured values
- plausibility check of the vehicle identification number
- and much more
All engineers and persons who want to read out OBD diagnostic data from vehicle control units. Engineers involved in vehicle homologation who require a reliable and complete OBD software solution. Authorities who check the OBD conformity of vehicles.
